Pre-Fabricated unit
This system is perfect for applications requiring a dedicated outdoor air solution for both process and comfort cooling.
In the initial stage, the system employs indirect evaporative heat exchange to lower the temperature of the incoming air. It features two separate airflows: a working air stream and a supply air stream.
The warm, humid working air stream is expelled into the atmosphere, while the chilled supply air stream is utilized for process or comfort cooling. For scenarios that demand additional cooling or humidity control, an optional second stage can be added. In this stage, the cooled supply air from the first phase undergoes further cooling and humidification through evaporative cooling.

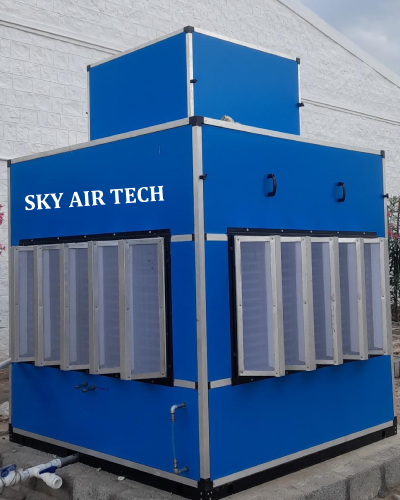

Pre-Fabricated Economic Air Washer (EAW) 30,000 CFM
At present we are doing projects on spinning, weaving, OE (open end) mills in textile industrials. Also we had done almost 30+ projects including we did projects on other states also. Meanwhile we are doing more projects in this.
| PANEL | Pre-Insulated with PUFF – 25mm Thick |
| SIZE | 2135mm Lx2135mm Wx3200mm H |
| POWER | 5.5KW (FAN) |
| PUMP | (0.75 KW) Submersible |
| FAN | 900mm Dia Aluminium Die Cast |
| CASING | 900mm Dia |
| PIPING | UPVC Pipe Arrangements with Spray Nozzles |
| PAD | Cell Deck Pad (DRI) Provided four sides 150mm Thick |
| ELIMINATOR | W-Type PVC Water Eliminator 170mm W (Virgin Quality) |
| WATER TANK | SS-304, Grade Tank 900 L Capacity in-buid with EAW |

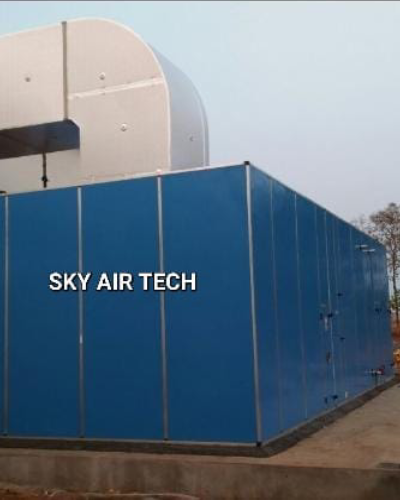

Pre-Fabricated Supply Plant
At present we are doing projects on spinning, weaving, OE (open end) mills in textile industrials. Also we had done almost 30+ projects including we did projects on other states also. Meanwhile we are doing more projects in this.
| NO Civil Cost | Temp reduction 29°C |
| Rh upto 80% | Easy Installation |
| Corrosion Free | Puff Insulated Panels |
| Low Power Cost | Designing 15,000 to 1,00,000 CFM |
| Transferable, Fully Automatic | S.S. Air Washer with Nozzle Spray System |
Semi Automatic Plant
In addition to the manual plant a Temperature & RH % Sensor is provided with a air washer pump “ON” / “OFF” controller so that the pump is switched off when the set RH% has reached inside the department.
Fully Automatic Plant
In addition to the Semi Automatic plant individual dampers are provided with actuators and suitable controllers for fine adjustment of intake and output air volumes depending on the inside and outside conditions. This system can also be supplied with central monitoring system for ease of adjustments.
